    VIS-NIR 400-1000nm Plano Concave Lens AR Coated , 546nm Design Wavelength

    Ask Lasest Price
    Brand Name : Wuhan Siwer Optics
    Price : 1.8-20USD/piece
    Supply Ability : 5000 pieces/month
    Delivery Time : 4-5 weeks
    • Product Details
    • Company Profile

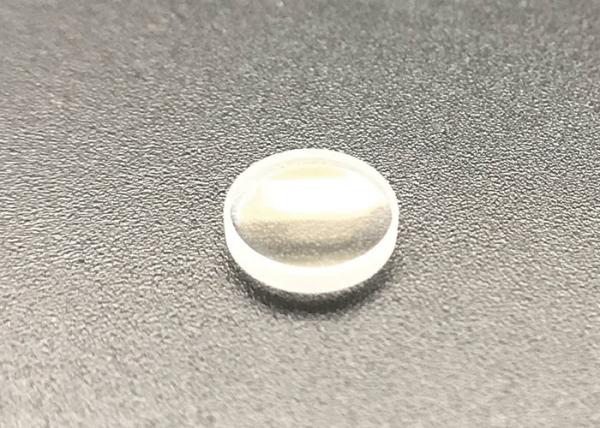

    VIS-NIR 400-1000nm Plano Concave Lens AR Coated , 546nm Design Wavelength

    Optical Plano Concave Lens

    AR Coated to Provide <1.25% Reflectance per Surface for 400 - 1000nm
    <0.25% Reflectance @ 880nm
    Designed for 0° Angle of Incidence
    Plano-Concave (PCV) lenses have one flat and one inward curved surface. PCV lenses have a negative focal length and are used for image reduction or to spread light.




    Production Line


    Optical Properties of Plano Concave Lens

    MaterialOptical glass
    AR Coating Range400-1000nm or customized
    Diameter Tolerance+0.0/-0.1 mm
    Thickness Tolerance±0.1 mm
    Focal Length Tolerance±2%
    Surface Quality40/20 Scratch-Dig
    Surface Flatness
    (Plano Side)
    λ/2 at 633nm
    Spherical Surface Powerc
    (Convex Side)
    1.5λ at 633nm
    Surface Irregularity
    (Peak to Valley)
    λ/2 at 633nm
    Centration<3 arcmin
    Clear Aperture>Ø10.16 mm (Ø1/2" Lenses)
    >Ø20.32 mm (Ø1" Lenses)
    Design Wavelength546nm
