Optical Glass 470nm Dichroic Short Pass Filter With Broad Spectral Ranges

    Buy cheap Optical Glass 470nm Dichroic Short Pass Filter With Broad Spectral Ranges from wholesalers

    Buy cheap Optical Glass 470nm Dichroic Short Pass Filter With Broad Spectral Ranges from wholesalers
    • Buy cheap Optical Glass 470nm Dichroic Short Pass Filter With Broad Spectral Ranges from wholesalers

    Optical Glass 470nm Dichroic Short Pass Filter With Broad Spectral Ranges

    Ask Lasest Price
    Brand Name : Wuhan Siwer Optics
    Price : 1-99USD/piece
    Payment Terms : T/T, Western Union
    Supply Ability : 20000 pieces/month
    Delivery Time : 1-3 weeks
    • Product Details
    • Company Profile

    Optical Glass 470nm Dichroic Short Pass Filter With Broad Spectral Ranges

    Dichroic Shortpass Filters

    Dichroic Shortpass Filters are designed for a 45° or 0° angle of incidence. The rejected light is reflected at 90° or 0°, making these filters ideal for use in fluorescence applications or as spectral beamsplitters. The filters feature low polarization dependence, broad spectral ranges, and a precision fused silica substrate.

    Short pass filters can effectively cut off the near-infrared band of light. They are widely used in various cold light sources, optical fiber lighting, LED lighting, metal halide lamp insulation, and infrared cut-off filters for optical imaging schemes: optical engines, filters for digital cameras to eliminate near-infrared interference from CCD and CMOS, to ensure the normal operation of photoelectric instruments and equipment.

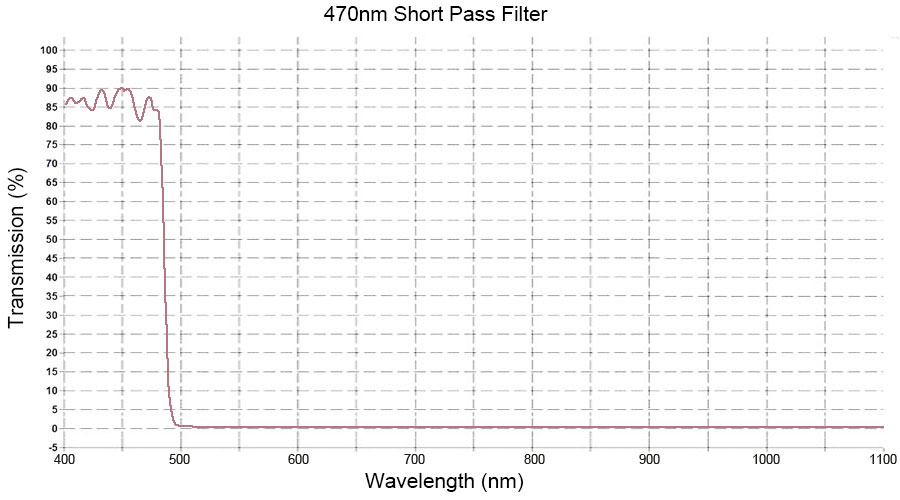

    Center wavelength: 470 + / - 5nm
    Transmission band: 350-460nm
    Block: 480-1100nm
    Peak transmittance: > 90%
    Product size: Customized
    Cut off depth:OD3-OD6
    Product material: optical grade glass (K9, BK7, B270, d263t, JGS1, color glass, float glass, etc.)
    Surface quality: 60/40




    Production Line
