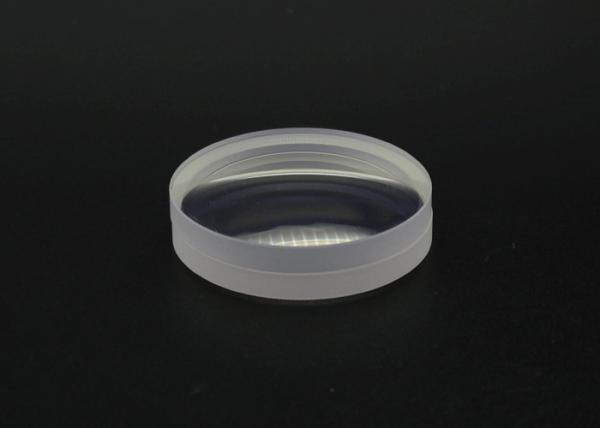

    Round Achromatic Doublet Lens Optical Glass Doublets Cemented Lenses

    Ask Lasest Price
    Brand Name : Wuhan Siwer Optics
    Model Number : Achromatic lens
    Price : 50-300USD/piece
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 pieces/month
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

    Round Achromatic Doublet Lens Optical Glass Doublets Cemented Lenses

    Acromatic Lens

    • Designed for 0° Angle of Incidence
    • Less Than 1.75% Reflectance Per Surface @ 400 - 700nm
    • VIS 0° and VIS-NIR Coated Achromats Also Available

    Achromatic lenses are very common type of viewer lenses,they consist of two or more lense elements,which have been corrected for chromatic aberration with respect to two selected wavelengths,the elements must be fixed in relation to one another by either mounting or cement.
    Achromatic lenses are designed to specifically function within the infrared,visible,or ultra-violet wavelength ranges,and they are not symmetric devices.
    They must be installed with the correct front-to-back orientation (thicker element usually faces the eyes) if installed incorrectly.with the lens orientation installed backwards the result will be extensive distortion and aberration.
    Optical glued lens are supplied coated or with a single layer anti-reflection coating suitable for the visible (400 - 700 nm) or the near infra-red (600 – 1200 nm).



    Optical AR Coatings

    a) Uncoated,The surface reflectivity of uncoated visible lenses(Refractive index=1.5) is about 4%.

    Click on the link to see how to calculate reflectivity

    b) AR/AR@400-700nm,Tavg>99.4%

    c) AR/AR@450-650nm,Tavg>99.6%

    d) AR/AR@400-1000nm,Tavg>98.5%

    e) We can also customize high damage threshold antireflective coatings

    Optical Properties of acromatic lens

    MaterialOptical glass
    AR Coating Range400-700nm or customized
    Reflectance over
    AR Coating Range @ 0° AOI

    Ravg<0.5%

    Diameter Tolerance+0.0/-0.1 mm
    Thickness Tolerance±0.1 mm
    Focal Length Tolerance±2%
    Surface Quality40/20 Scratch-Dig
    Surface Flatness
    (Plano Side)
    λ/2 at 633nm
    Spherical Surface Powerc
    (Convex Side)
    1.5λ at 633nm
    Surface Irregularity
    (Peak to Valley)
    λ/2 at 633nm
    Centration<3 arcmin
    Clear Aperture>Ø10.16 mm (Ø1/2" Lenses)
    >Ø20.32 mm (Ø1" Lenses)
    Design Wavelength546nm

    Lens Grinding

    Lens High Speed Polishing

    Optical Coating
