Brand Name : | Wuhan Siwer Optics |
Model Number : | Customized |
Price : | 8-50 USD/piece |
Payment Terms : | T/T, Western Union |
Supply Ability : | 300 pieces/month |
Delivery Time : | 4-6weeks |

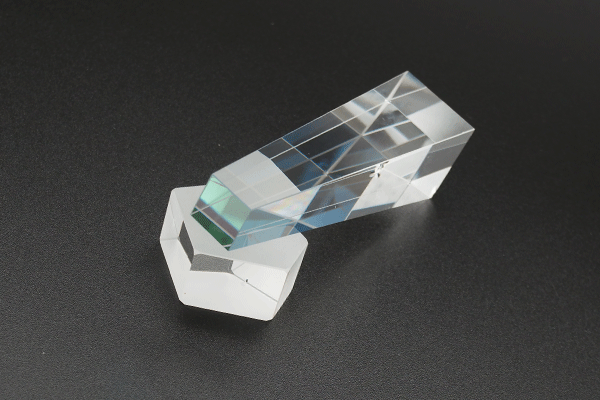

Light Guide Prism
Light Guide Prism uses the principle of total reflection of light inside the prism to efficiently guide the light into the place pointed by the prism.
In order to prevent light escaping from the prism,the edges should not have a chamfer.
Siwer Optics has experience to produce this light guide prism for
years.
Our unique production technology solves the problem of prism edge
breaking,It improves the yield of prism.
Optical Properties of Optical Prism
Material | Optical glass(N-BK7,Fused Silica etc.) |
Diameter Tolerance | +0.0/-0.1 mm |
Roof angle Tolerance | ±5 arc sed |
Standard Angle Tolerance | 3 arc min |
Surface Quality | 40/20 Scratch-Dig |
Surface Flatness (Plano Side) | λ/2 at 633nm |
Surface Irregularity (Peak to Valley) | λ/8 at 633nm |
Optical Coating | AR,HR,Metallic Reflective coatings |
