equilateral triangle dispersive optical prisms

Dispersive prism

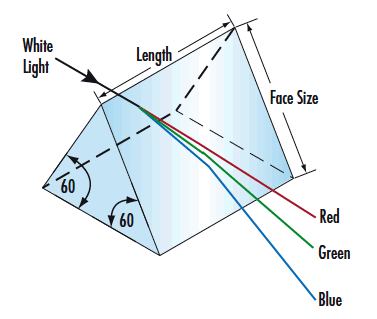

In optics, a dispersive prism is an optical prism, usually having the shape of a geometrical triangular prism, used as a spectroscopic component. Spectral dispersion is the best known property of optical prisms, although not the most frequent purpose of using optical prisms in practice. Triangular prisms are used to disperse light, that is, to break light up into its spectral components (the colors of the rainbow). Different wavelengths (colors) of light will be deflected by the prism at different angles, producing a spectrum on a detector (or seen through an eyepiece). This is a result of the prism's material (often, but not always, a glass) index of refraction varying with wavelength. By application of Snell's law, one can see that as the wavelength changes, and the refractive index changes, the deflection angle of a light beam will change, separating the colors (wavelength components) of the light spatially. Generally, longer wavelengths (red) thereby undergo a smaller deviation than shorter wavelengths (blue) where the refractive index is larger.

A good mathematical description of single-prism dispersion is given by Born and Wolf. The case of multiple-prism dispersion is treated by Duarte.

Main Specs of Equilateral Dispersive Prisms
	Product Name	Equilateral Dispersive Prisms
	Diameter &Tolerance	3-150±0.02mm
	Angle Tolerance	±30 Arc Seconds
	Thickenss &Tolerance	3-100±0.05mm
	Surface Flatness	1/4 L @632.8nm
	Surface Quality	20-10
	Material	BK7/quartz/sapphire/Ge/CaF2/ZnSe
	Beveling	0.35±0.1mm
	Coating	AR coatimg Reflective coating Dichroic coating

Production Line

Related Prisms

What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.

How to pay?

(1) T/T, PayPal, West Union,etc

(2) Bank Fee: West Union-USD30.00(≤USD3000.00),

T/T-USD20.00+, PayPal-5%. Please consult the local bank.

What's the deliver time?
For inventory: the delivery time is around 5 workdays.

Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.

Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.

Company profile

Wuhan Siwer Optics is a professional manufacturer of various optical components.We focuses on production of optical interference filters,infrared and visible optical components.
The company has optical optimization design, precision optical processing and optical coating technology and production technology, with complete production processing and testing equipment, perfect quality management system.
With continuous technological progress and management innovation, we will create more value and provide better products and services for our customers.

Product Range

Discover the range of standard optical components,including interference filters,optical lenses,prisms,laser windows,dielectric and metallic mirors.We can supply quick interference filters purchase and delivery from our stock,design and manufacture custom optical elements from a wide range of optical materials with vacuum coatings.

Infrared and visible optical prisms,lenses,windows
Material:Germanium,Silicon,ZnSe,ZnS,CaF2,MgF2,Sapphire,Visible optical glass,etc.

Interference filters:bandpass filters,shortpass filters,longpass filters.

Our filters are widely used in: driverless, UAV, optical fiber communication, industrial laser, automation equipment, semiconductor production, micro measurement system, building surveying and mapping, biometrics, medical instruments and devices, security monitoring, beauty instruments, stage lighting, high-energy laser equipment, military equipment, infrared imaging, visual light source, biochemical analyzer, enzyme marker, fingerprint identification, rainbow Membrane recognition, micro projection and imaging systems.

Optical coatings:Infrared Anti-Reflective Coating,Partial Reflective Coating, High Reflective Coating, Polarization Beamsplitter Coating, Dichroic Coating.

Our products are widely used in Precision Instruments,Beauty Equipments,Medical Equipments,Infrared Imaging,Measurement Systems,Laser Processing Equipments,and Scientific area.
